| 型号 |
|
JK8473 | JK8474 | JK8475 |
| 额定载重 | kg | 250 | 500 | 1000 |
| 载荷中心 | mm | 400 | 500 | 575 |
| 货叉最大高度 | mm | 1560 | 1560 | 1500 |
| 货叉最低高度 | mm | 90 | 90 | 88 |
| 货叉宽度可调范围 | mm | 150-690 | 160-690 | 540不可调 |
| 货叉宽度 | mm | 60 | 70 | 160 |
| 货叉长度 | mm | 800 | 1000 | 1150 |

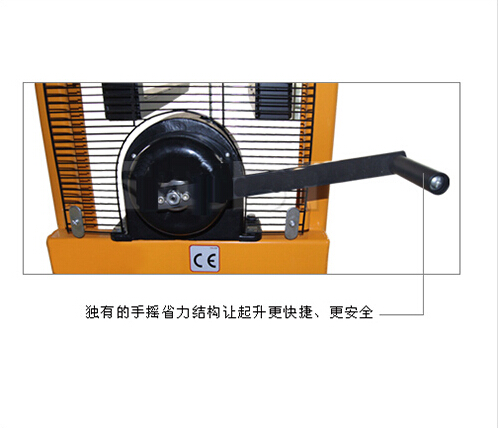

| 手摇每圈升高量 | mm | 40 | 22 | 9.5 |
| 离地间隙 | mm | 18 | 18 | 24 |
| 最小转弯半径(外圈) | mm | 1075 | 1075 | 1250 |
| 配载轮 | mm | 80×47 | 80×47 | 80×94 |
| 驱动轮 | mm | 150×40 | 150×40 | 150×50 |
| 整车尺寸 | mm | 1325×725×2030 | 1325×725×2030 | 1600×725×1930 |
| 净重 | kg | 140 | 146 | 182 |
